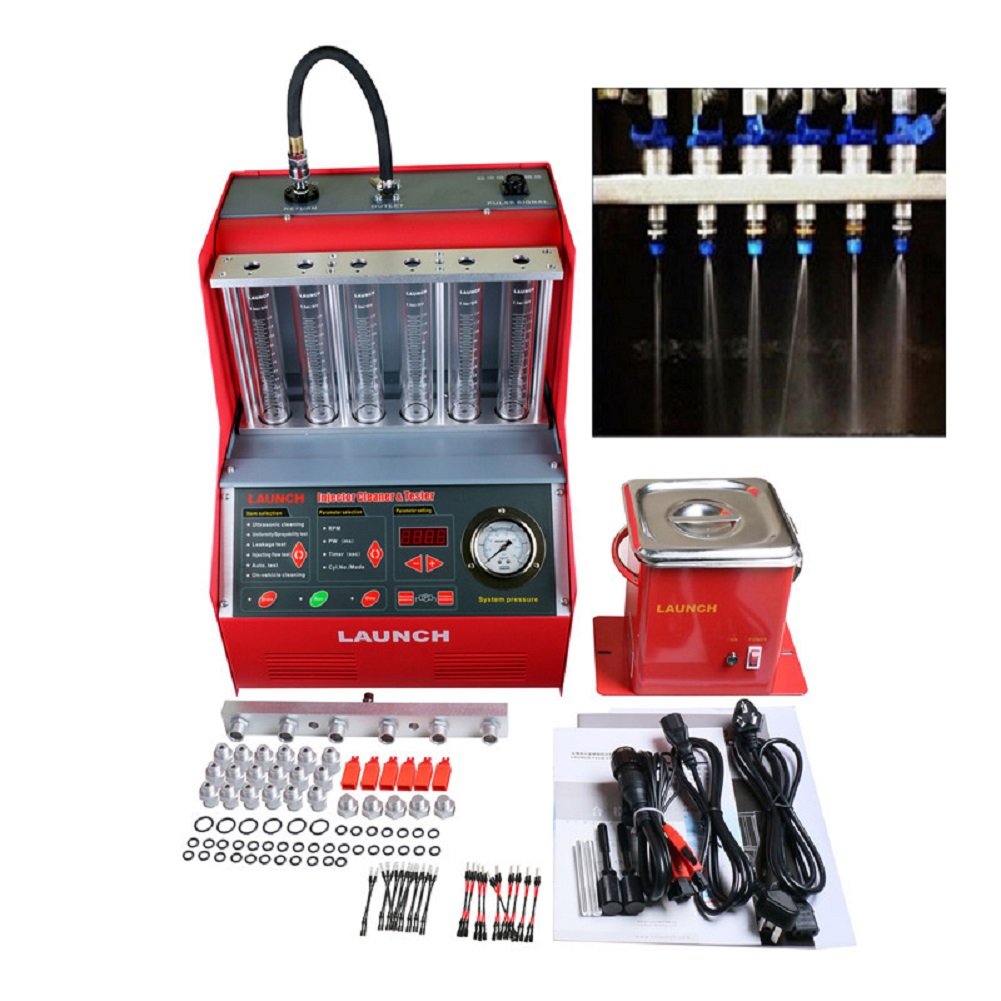

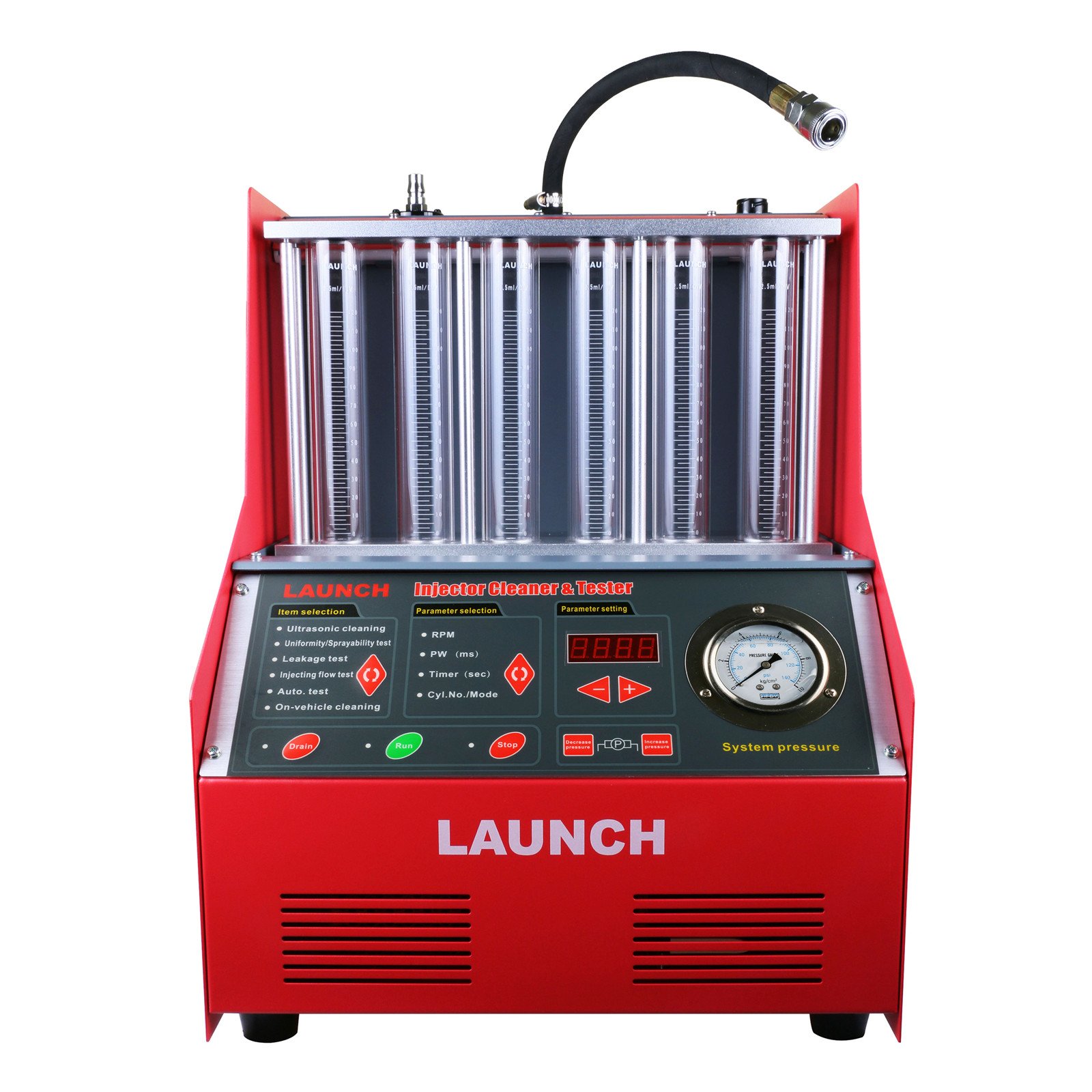

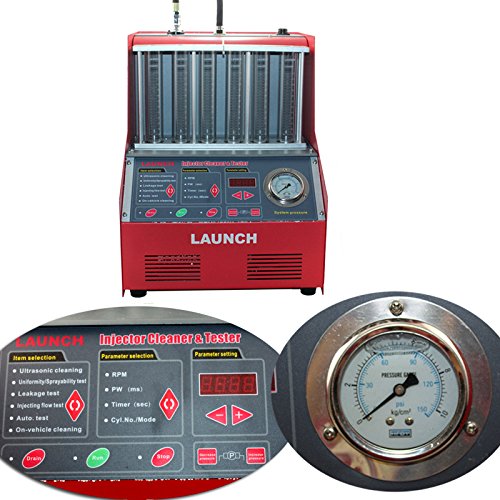

Autool Launch CNC602A Fuel Injector Cleaner & Tester Kit with 110V Transformer - Professional Automotive Diagnostic Tool for Engine Maintenance & Performance Tuning

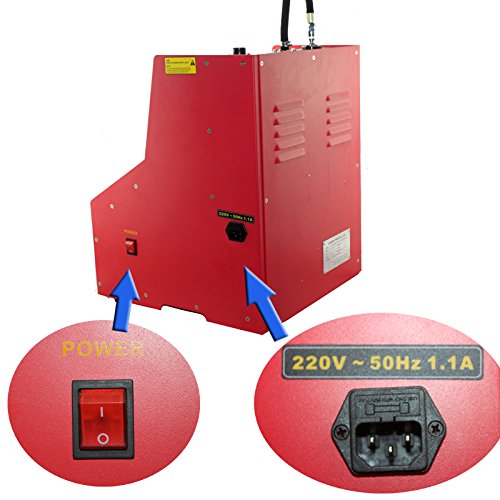

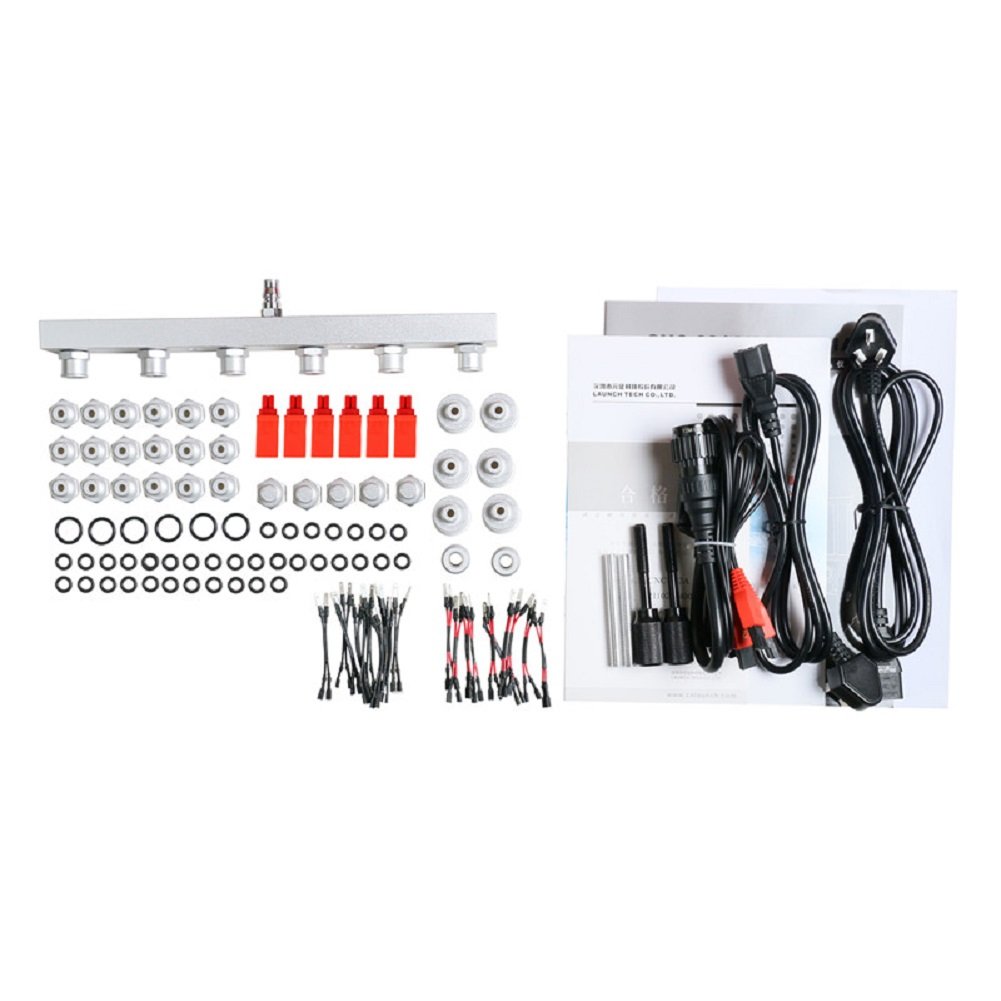

How to Work ? 1. Clean injector's outside with gasoline or cleaning liquid before open machine 2 Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt. 3 Turn on ultrasonic system，pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors. 4 Fixed injectors on main machine 5 Testing injectors for resistance, shorts, and current draw 6 Performing leak test, spray pattern, and flow rate testing on flow bench. 7 The injectors are now returned to the flow bench for retesting of all functions. Specification: * Power supply: AC220V±10%, 50/60Hz;AC110V±10%, 50/60Hz. * Input power: 250W; * Ultrasonic cleaner power: 100W; * Simulated RPM range: 109990rpm; step: 10rpm; * Time range: 19999s; * Pulse width: 0.525ms; step 0.1 ms; * Fuel tank capacity: 4700ml; * Dimensions: 385mm×410mm×500mm * Weight: About 35kg Launch CNC-602A injector &cleaner tester package list: 1 105020217 CNC pulse signal connection cable 1,T=0.5 2 105020218 CNC pulse signal connection cable 2,T=0.8 3 103260037 Ultrasonic cleaner assembly 100W 4 106030038 On-vehicle adaptor package(tool kits) 5 107010428 CNC-602A user manual(En&Ch) 6 103250013 Top-supply connector 1 7 103250015 Swiss thread adaptor for fuel top-supply injector 8 103250016 Coarse thread adaptor for fuel top-supply injector 9 103250018 CNC-601/801 Hexangular stopper 10 104990012 CNC-801 BUICK injector adaptor 11 199010019 Injector testing liquid (pick out) 12 307030024 Injecter detergent (pick out) FUNCTIONS: Ultrasonic Cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors. Idle Speed Test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector. Medium Speed Test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector. High-Speed Test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector. Acceleration Test: Simulate the acceleration state of the car and test the performance of the fuel injector. Shift Speed Test: Simulate the shifting state of the car and test the working performance of the fuel injector. Leakage Test: Test the sealing condition of the fuel injector. Idle Dpeed Sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector. Medium Speed Sprayability Test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector. High-Speed Sprayability Test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector. Reverse Flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector). No-Disassembly Cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, which requires special adapters.

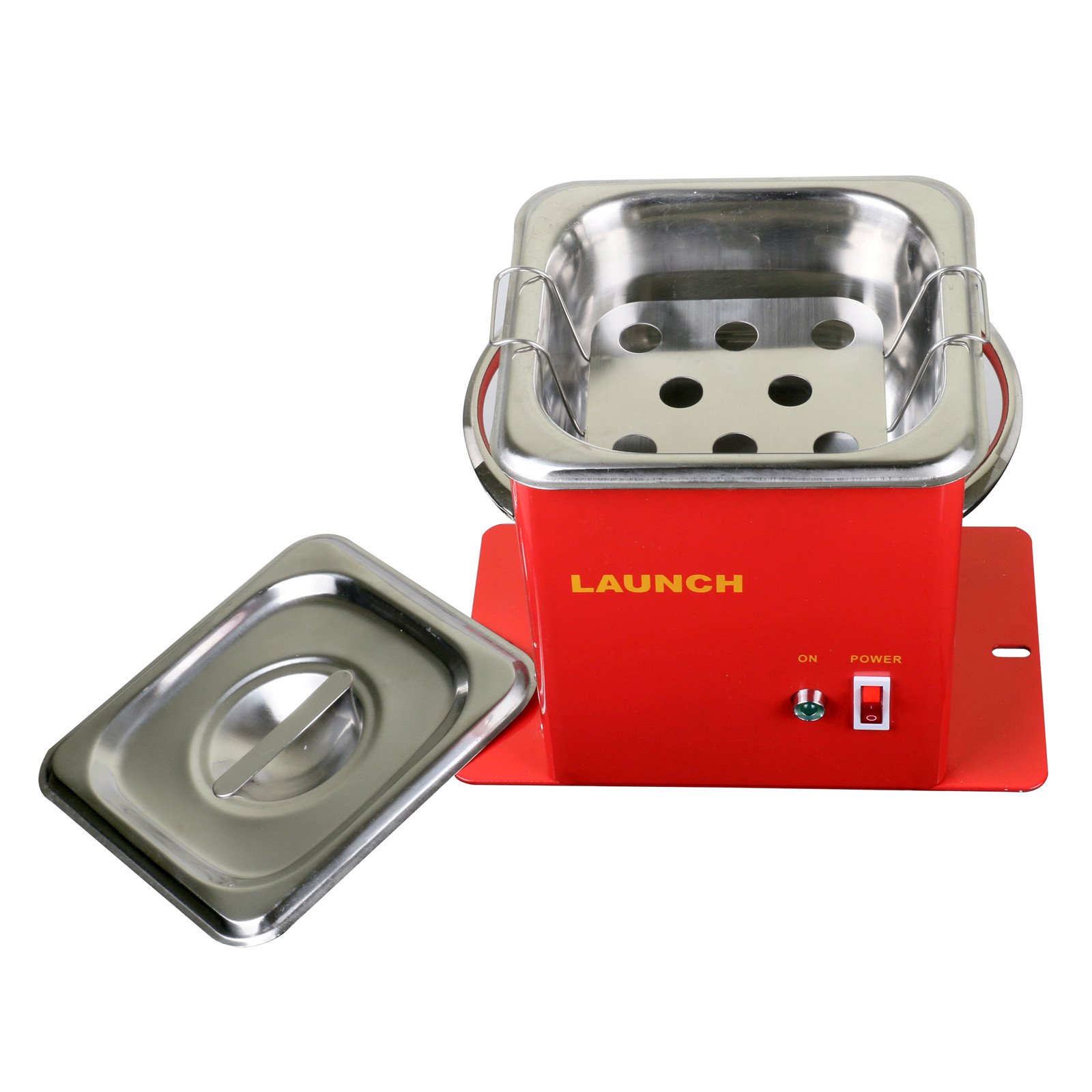

?[NOTE] We do not provide any liquid in the package, Please buy liquid from your local market.Ultrasonic cleaning To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely

?[Uniformity/Sprayability test ] To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. T his test is also for reverse flush

?[Leakage test ] To test the sealing and dribbling conditions of injectors under system pressure.

?[Injecting flow test ] To check the injecting amount of the injector in 15 seconds of constant injection. * Auto. test To test injectors by simulating different working conditions.

?[On-vehicle cleaning ] The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

?[Hi-tech Ultrasonic Cleaning] Built-in Ultrasonic mechanism. Different from the traditional way, it works by sending an ultrasonic vibration signal to the injector nozzle through the pulse signal line, which makes the stubborn carbon deposit jitter strongly and removes it more thoroughly.

?[Efficient & Labor-free] 6 injectors can be tested and cleaned at one time. Support reverse cleaning & on-vehicle cleaning. Plus, it can also be used on 8 cylinders, twice tests will do.

?[Portable & Durable] Tool trolley makes it more convenient to operate. Equip with high-quality pump, which makes it more endurable.

?[1-YEAR WARRANTY]： For damage caused by non-human factors, we promise to resend parts for free within 1 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.
